- 8″ (200 mm) Low Frequency Driver
- 1″ (25 mm) High Frequency Driver
- Convenient mounting options
- Smooth on and off frequency response
- High performance transducers
- 90° conical dispersion
- High SPL
- Professional construction
- High quality components

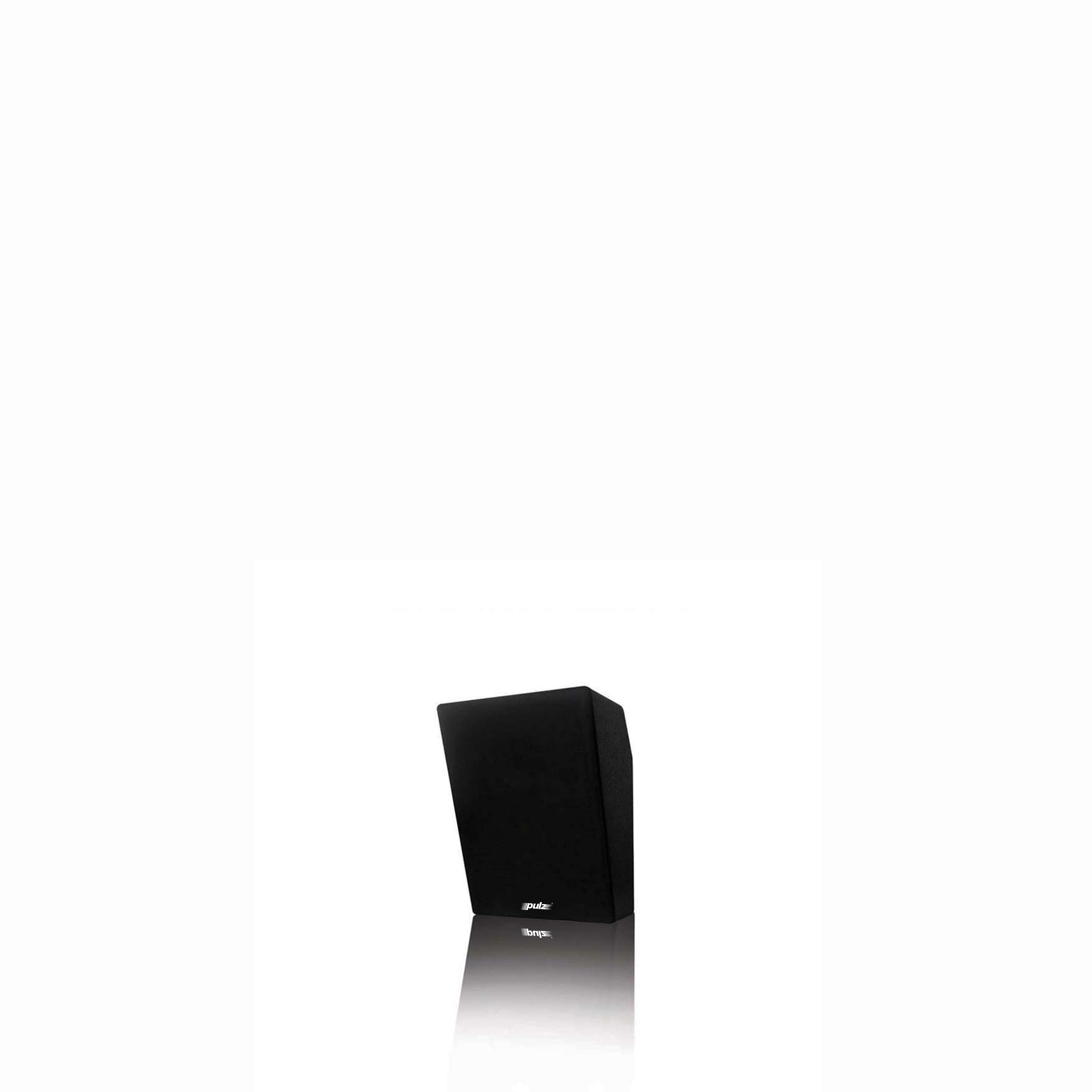

The Pulz ES8 is a 2-Way Cinema Surround Speaker System, designed to reproduce faithfully the wide dynamic range and extended frequency response to meet today’s immersive audio formats.
The system features a 8” (200 mm) long throw Mid-Bass driver in a reflex enclosure along with a 1” (25 mm) Dome tweeter mounted on a conical waveguide. The crossover network has been specially designed to have flat frequency response over the entire audible frequency range.
The shape of ES8 allows easy wall mounting with a 15° downward tilt. With a sensitivity of 93.5dB and well controlled dispersion characteristics, it can cover a wide seating area with even frequency and power response. The black textured finish and slim line construction of the enclosure blends unobtrusively in the cinema auditoria.
The mounting provisions of this speaker have been designed to suit a wide range of cinemas.
|Frequency Response||65Hz to 20kHz|
|Power Rating||100W AES, 400W peak|
|Sensitivity||93.5dB @ 1W/1m|
|Maximum SPL||113.5dB continuous, 119.5dB peak @ 1m|
|Low Frequency Driver||8″ (200 mm) Mid-Bass drive|
|High Frequency Driver||1” (25 mm) Dome tweeter|
|Crossover||2.5kHz Passive, low loss air core inductors and MKP capacitors|
|Finish||Black impact resistant structured coating|
|Connector||Push type binding post, cable upto 4 mm diameter|
|Enclosure||15 mm MDF direct radiator vented enclosure|
|Dimensions (H x W x D)||470 mm x 355 mm x 288 mm (18.5″ x 14″ x 11.3″)|
|Net Weight||10.2 kg (22 lb)|
|Packed Weight||11.2 kg (25 lb)|
