- 2 X 15″ (380 mm) Low Frequency Driver
- 1.75″ (44 mm) High Frequency Driver
- High dynamic SPL
- High system efficiency
- Low harmonic distortion
- Exceptional transient response
- Smooth and extended frequency response
- Compact size
- Ideal for medium to large size auditoria

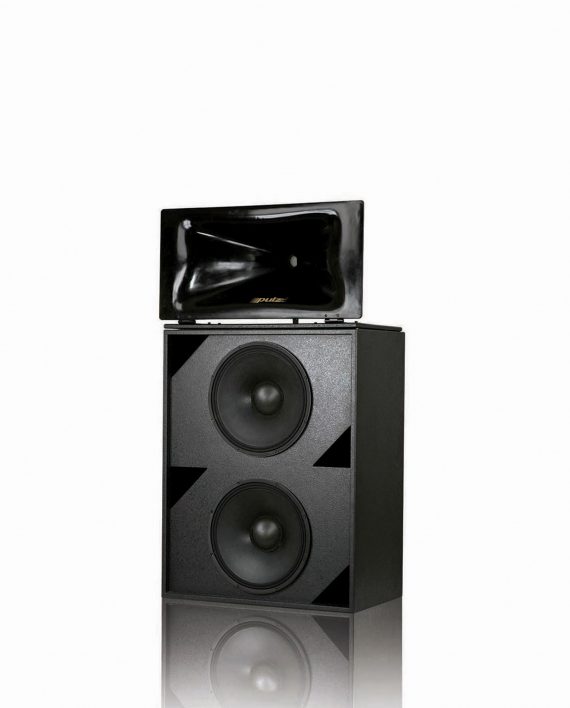

The Pulz EM3 2-Way Cinema Screen Speaker System has been developed as a cost effective solution for use in medium to large size cinemas.
The system consists of 2 X 15” low frequency transducers in conjunction with a 1.75″ voice coil high frequency compression driver of high sonic quality and dynamic range.
The 90° horizontal and -30° to +20° vertical pattern control horn exhibits uniform HF response throughout the cinema auditorium. The dual 15″ drivers are independently loaded in a direct radiator bass-reflex enclosure. This technique avoids “sympathetic failure” and provides better interface options with the amplifiers.
The large port area reduces turbulence at full power output and low frequencies. A heavy duty spring loaded push type terminals ensures secure connection to the LF driver.
Full performance of the EM3 system is achieved by a bi-amp configuration using either Analog or Digital crossover.
All components feature a textured black finish to eliminate the reflection of light through perforated cinema screens.
|Frequency Response||45Hz to 20kHz|
|Power Rating||LF: 800W AES, 3200W peak;
HF: 80W AES, 450W peak
|Sensitivity||LF: 101dB @ 1W/1m;
HF: 113dB @ 1W/1m
|Maximum SPL||LF: 130dB continuous, 136dB peak @ 1m;
MF/HF: 132dB continuous, 138dB peak @ 1m
|Nominal Impedance||LF: 4Ω; HF: 8Ω|
|Recommended Amplifier||600W to 1200W @ 4Ω|
|Low Frequency Driver||2 X 15″ (380 mm) weather resistant long excursion woofer|
|High Frequency Driver||1.75″ (44 mm) voice coil compression driver|
|Finish||Black impact resistant structured coating|
|Connector||Push type binding post, cable upto 4 mm diameter|
|Enclosure||18 mm MDF direct radiator vented enclosure|
|Horn||90˚ horizontal, -30˚ + 20˚ vertical|
|Dimensions (H X W X D)||1334 mm X 760 mm X 424 mm (52.5” X 30″ X 16.7″)|
|Net Weight||68 kg (150 lb)|
|Packed Weight||75 kg (165 lb)|
