- 2 x 12″ (300 mm) Low Frequency Driver
- 1.75″ (44 mm) High Frequency Driver
- High dynamic SPL
- High system efficiency
- Low harmonic distortion
- Exceptional transient response
- Unique pattern control
- Smooth and extended frequency response
- Compact size
- Ideal for small and medium size auditoria

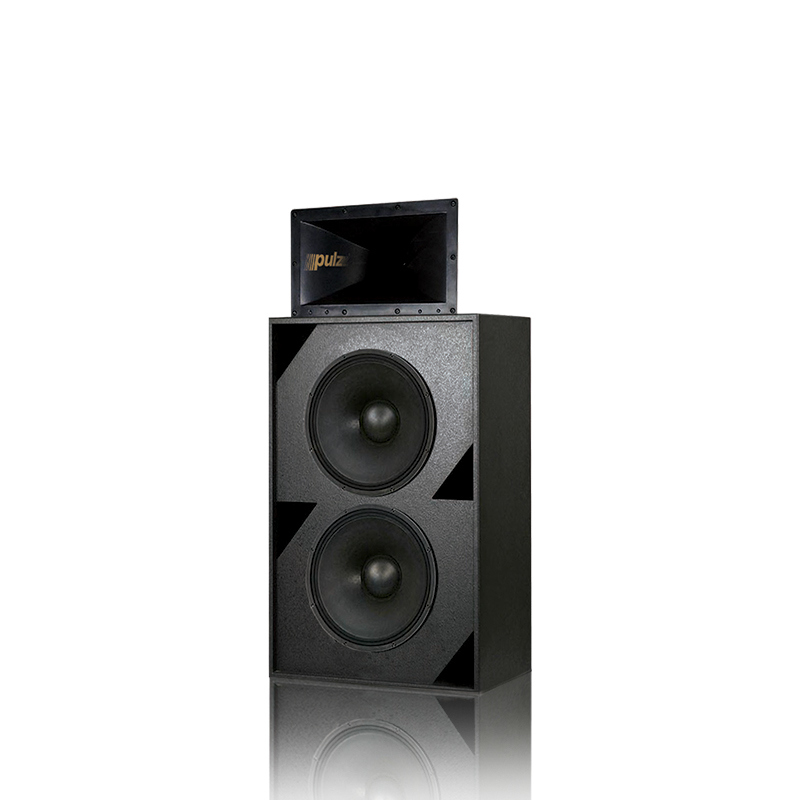

The Pulz EM2P 2-Way Passive Cinema Screen Speaker System has been developed as a cost effective solution for use in small to medium size cinemas.
The system consists of 2 X 12” low frequency driver in conjunction with 1.75″ voice coil high frequency driver of high sonic quality and dynamic range.
The 90° horizontal and 40° vertical pattern control horn exhibits uniform HF response throughout the cinema auditorium. The dual 12″ drivers are independently loaded in a direct radiator bass-reflex enclosure. This technique avoids “sympathetic failure” and provides better interface options with the amplifiers.
The large port area reduces turbulence at full power output and low frequencies. A heavy duty spring loaded push type terminals ensures secure connection to the LF driver.
EM2P system incorporates a critically designed passive crossover due which the system can be driven with a single channel of amplifier.
All components feature a textured black finish to eliminate the reflection of light through perforated cinema screens.
|Frequency Response||50Hz to 20kHz|
|Power Rating||800W AES, 3200W Peak|
|Sensitivity||100dB @ 1W/1m|
|Maximum SPL||129dB continuous, 135dB peak @ 1m|
|Nominal Impedance||4 Ω|
|Recommended Amplifier||500W to 1000W @ 4Ω|
|Low Frequency Driver||2 x 12″ (300 mm) weather resistant long excursion woofer|
|High Frequency Driver||1.75″ (44 mm) voice coil compression driver|
|Finish||Black impact resistant structured coating|
|Connector||Push type binding post, cable upto 4 mm diameter|
|Enclosure||18 mm MDF direct radiator vented enclosure|
|Horn||90˚ horizontal x 40˚ vertical|
|Dimensions (H x W x D)||1042 mm x 536 mm x 355 mm|
|Net Weight||42 kg (92 lb)|
|Packed Weight||46 kg (101 lb)|
