- 8″ (200 mm) Low Frequency Driver
- 1″ (25 mm) High Frequency Driver
- Convenient mounting options
- High performance coaxial driver
- 90° conical dispersion
- High SPL
- Smooth frequency response on and off axis
- Professional construction
- High quality components

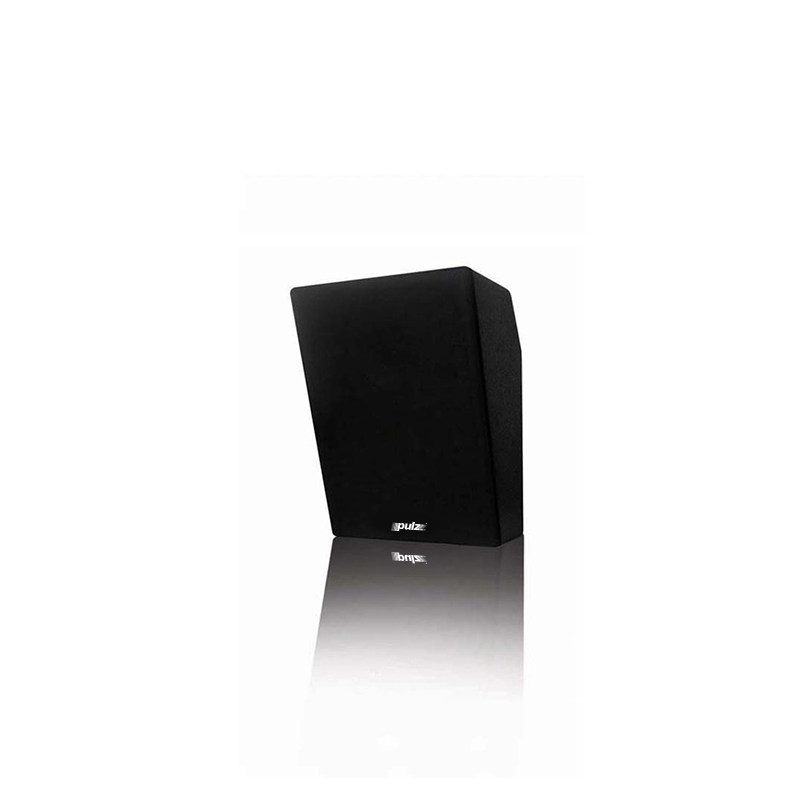

The Pulz CSX8 Cinema Surround Speaker System is designed to reproduce immersive audio soundtracks faithfully in small and medium cinemas. Powered with a 8” high sensitivity low distortion woofer and 1″ voice coil compression driver of European origin, CSX8 is capable of reproducing very high SPL and uniform dispersion throughout the auditorium. In the conventional cinema surround speaker systems, multiple drivers are aligned either vertically or horizontally. This design may produce off axis lobes and uneven frequency response. The Pulz 8” driver with coaxially mounted HF unit on the other hand is coherent and produces smooth on and off axis frequency response.
A sophisticated passive crossover with close tolerance components ensures seamless integration of low and high frequency drivers. The vented enclosure is CAD optimized for precise low frequency loading. The geometry of the acoustically transparent grill minimizes diffraction. Heavy duty spring loaded terminal posts facilitates convenient and secure connectivity at site.
The shape of CSX8 allows it to be wall mounted with a 15° downward angle. The enclosure is equipped with various mounting options to place it directly on the wall or mount it with optional C-bracket to achieve ±45° tilts in 9° increments. Additional security hooks are provided to ensure additional safety when mounting the system on ceiling. The heavy duty MDF enclosure is finished with abrasion resistant textured paint.
The Pulz CSX8 incorporates advanced technology driver and components to deliver dynamic, high SPL and wide dispersion sound into small and medium cinemas to reproduce ambience and effects.
|Frequency Response||65Hz to 20kHz|
|Power Rating||120W AES, 480W peak|
|Sensitivity||93.8dB @ 1W/1m|
|Maximum SPL||114.5dB continuous, 120.5dB peak @1m|
|Low Frequency Driver||8” (200 mm) Low-Mid driver with coaxial entry|
|High Frequency Driver||1” (25 mm) voice coil compression driver mounted coaxially|
|Crossover||2.6kHz Passive, Air core inductors, MKP capacitors, wirewound resistors|
|Finish||Black impact resistant structured coating|
|Connector||Push type binding post, cable upto 4 mm diameter|
|Enclosure||15 mm MDF direct radiator vented enclosure|
|Grill||Acoustically transparent woven fabric|
|Dimensions (H x W x D)||390 mm x 320 mm x 285 mm (15.3” x 12.6” x 11.2”)|
|Net Weight||10 kg (22 lb)|
|Packed Weight||11.5 kg (25.3 lb)|
