- 10″ (250 mm) Low Frequency Driver
- 1″ (25 mm) High Frequency Driver
- Convenient mounting options
- High performance coaxial driver
- 90° conical dispersion
- High SPL
- Smooth frequency response on and off axis
- Professional construction
- High quality components

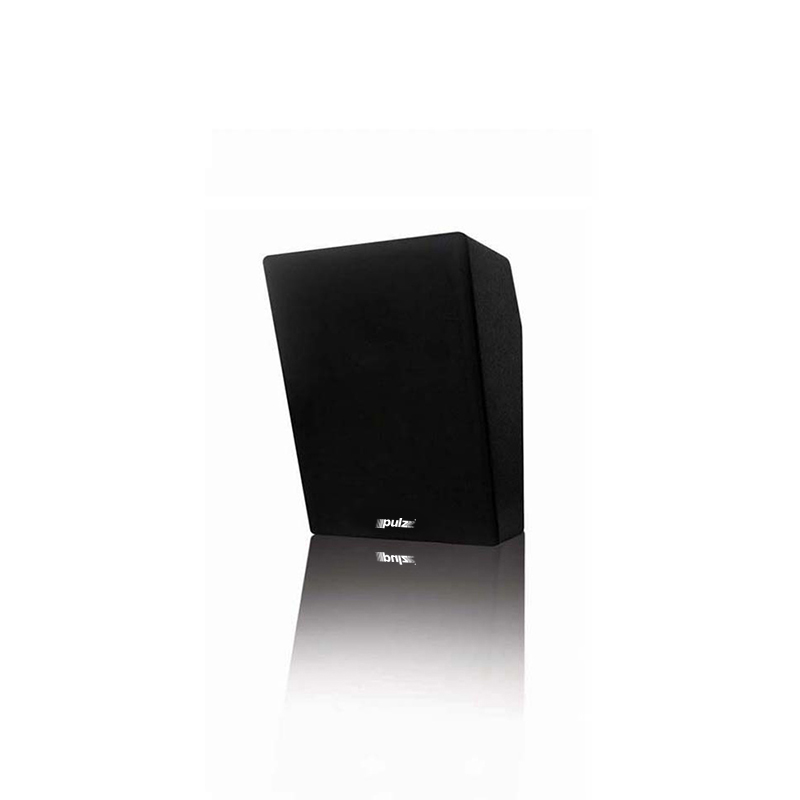

The Pulz CSX10 Cinema Surround Speaker System is designed to reproduce immersive audio soundtracks faithfully in medium and large cinemas. Powered with a 10” high sensitivity low distortion woofer and 1″ voice coil compression driver of European origin, CSX10 is capable of reproducing very high SPL (sound pressure level) and uniform dispersion throughout the auditorium. In the conventional cinema surround speaker systems, multiple drivers are aligned either vertically or horizontally. This design may produce off axis lobes and uneven frequency
response. The Pulz 10” driver with coaxially mounted HF unit on the other hand is coherent and produces smooth on and off axis frequency response.
A sophisticated passive crossover with close tolerance components ensures seamless integration of low and high frequency drivers. The vented enclosure is CAD optimized for precise low frequency loading. The geometry of the acoustically transparent grill minimizes diffraction. Heavy duty spring loaded terminal posts facilitates convenient and secure connectivity at site.
The shape of CSX10 allows it to be wall mounted with a 15° downward angle. The enclosure is equipped with various mounting options to place it directly on the wall or mount it with optional C-bracket to achieve ±45° tilts in 9° increments. Additional security hooks are provided to provide additional safety when mounting the system on ceiling. The heavy duty MDF enclosure is finished with abrasion resistant textured paint.
The Pulz CSX10 incorporates advanced technology driver and components to deliver dynamic, high SPL and wide dispersion sound into medium and large cinemas to reproduce ambience and effects.
|Frequency Response||65Hz to 20kHz|
|Power Rating||150W AES, 600W peak|
|Sensitivity||96.7dB @ 1W/1m|
|Maximum SPL||118dB continuous, 124dB peak @ 1m|
|Low Frequency Driver||10″ (250 mm) Low-Mid driver with coaxial entry|
|High Frequency Driver||1″ (25 mm) voice coil compression driver mounted coaxially|
|Crossover||2.5kHz Passive, low loss air core inductors and MKP capacitors|
|Finish||Black impact resistant structured coating|
|Connector||Push type binding post, cable upto 4 mm diameter|
|Enclosure||15 mm MDF direct radiator vented enclosure|
|Grill||Acoustically transparent black woven fabric|
|Dimensions (H x W x D)||495 mm x 365 mm x 331 mm (19.4” x 14.3” x 13”)|
|Net Weight||13.4 kg (30 lb)|
|Packed Weight||14.5 kg (32 lb)|
