- 5” (125 mm) Low Frequency Driver
- 1″ (25 mm) High Frequency Driver
- High performance coaxial driver
- Wavefront coherency at all frequencies
- 90° conical dispersion
- Full range of mounting options
- High SPL

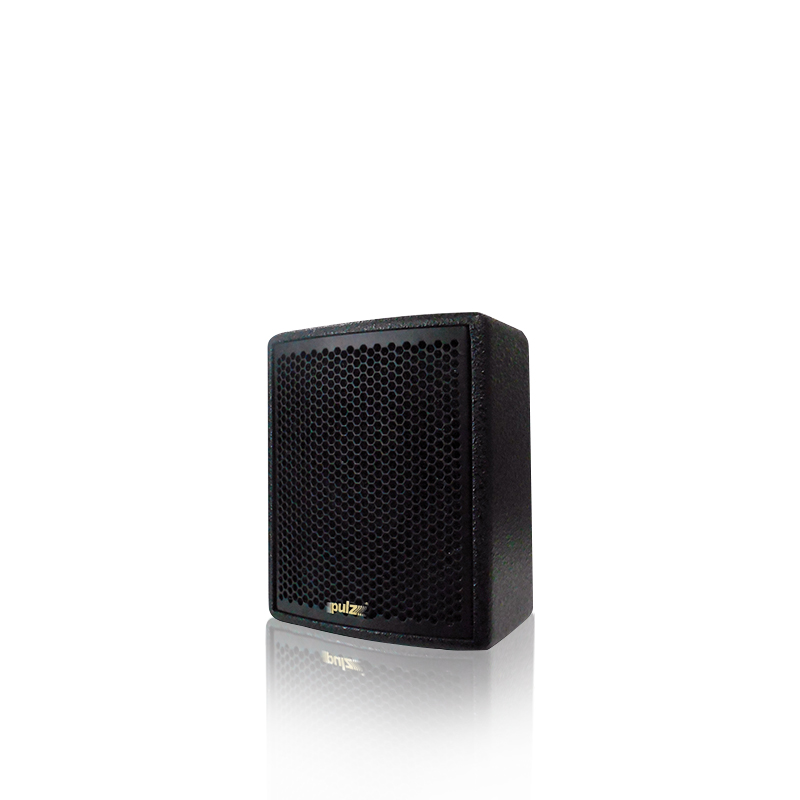

The Pulz CX5 loudspeaker is a versatile system that is designed for high quality distributed sound reinforcement or compact front fill to be used with our larger FOH (Front of House) speaker systems. Using true point source coaxial technology, the CX5 features advanced components in flexible, multipurpose format that is suitable for fixed installations. The CX5 is a passive 2-Way loudspeaker containing a 1″ exit compression driver assembled in a coaxial configuration along with a 5″ Low-Mid frequency driver providing a conical 90° dispersion.
Further advantages of the coaxial approach include: single point source radiation, total wavefront coherency at all frequencies and superimposed LF/HF dispersion characteristics that are free of polar lobing effects typical of traditional horn and woofer combinations. The net result is natural, studio monitor level sound quality that is ideal for proximity use.
The new MVC (Multi Vent Convection) technology, allows the CX5 to handle its maximum power capacity in any working position.
Retail outlets, front fill for installed PA, AV theatre, high quality audio for classrooms etc. are some of the field applications of the CX5. The design and additional mounting options for the CX5, provide this speaker a simple and easy installation. As a front fill for main FOH systems, the CX5 is meant for vocal and music applications. Combined with Pulz subwoofers, the CX5 allows to create compact and powerful systems suitable for all indoor and outdoor configurations.
|Frequency Response||100Hz to 20kHz|
|Power Rating||150W AES, 600W peak|
|Sensitivity||92.5dB @ 1W/1m|
|Maximum SPL||114dB continuous, 120dB peak @ 1m|
|Low Frequency Driver||5” (125 mm) Mid-Bass driver with coaxial entry|
|High Frequency Driver||1″ (25 mm) voice coil compression driver mounted coaxially|
|Nominal Directivity||90° conical|
|Recommended filter|| 30Hz 18dB/octave Butterworth High Pass Filter;
20kHz 12dB/octave Butterworth Low Pass Filter
|Crossover||4 kHz passive, Air core inductors, MKP capacitors, wire wound resistors|
|Finish||Black impact resistant structured coating|
|Connector||2 x Speakon|
|Enclosure||Closed type, 15mm Birch Plywood|
|Grill||Acoustically transparent perforated steel with foam backing|
|Dimensions (H X W X D)||216 mm x 192 mm x 182 mm (8.51’’ x 7.57’’ x 7.17’’)|
|Net Weight||05 kg (11 lb)|
|Packed Weight||06 kg (13 lb)|
