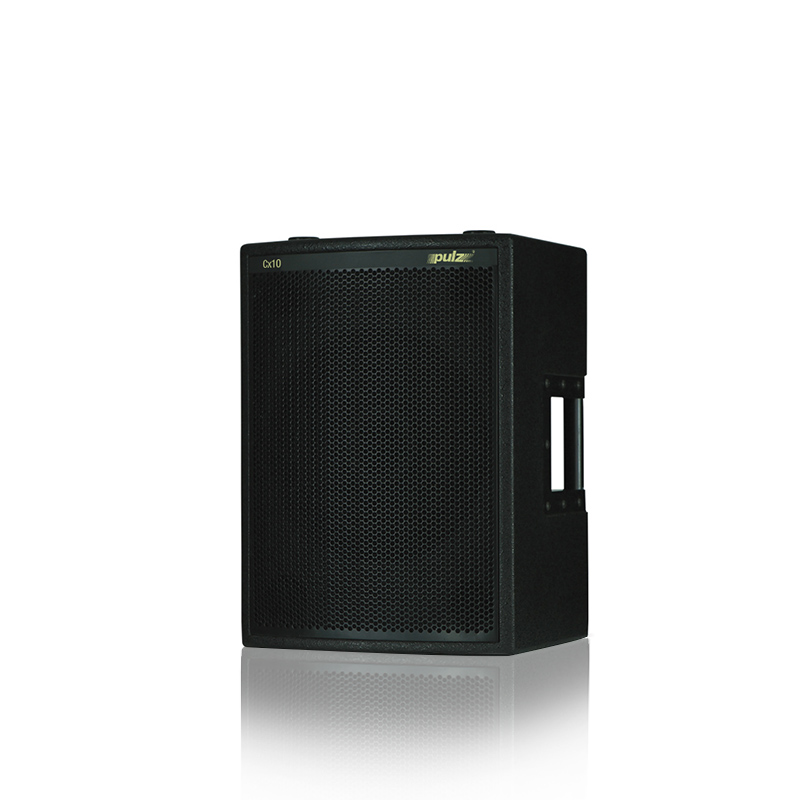

CX10

Features

  • 10” (250 mm) Low Frequency Driver
  • 1” (25 mm) High Frequency Driver
  • High performance coaxial driver
  • Wavefront coherency at all frequencies
  • 90° conical dispersion
  • Full range of mounting options
  • High SPL

Frequency Response 60Hz to 20kHz
Power Rating 150W AES, 600W peak
Sensitivity 96.7dB @ 1W/1m
Maximum SPL 118dB continuous, 124dB peak @ 1m
Nominal Impedance
Low Frequency Driver 10″ (250 mm) Low-Mid driver with coaxial entry
High Frequency Driver 1″ (25 mm) voice coil compression driver mounted  coaxially
Recommended Filter 50Hz 18dB/octave Butterworth high pass filter;



20kHz 18dB/octave Butterworth low pass filter

Crossover 2.5kHz Passive, low loss air core inductors and MKP capacitors
Dispersion 90° conical
Finish Black impact resistant structured coating
Connector 2 X Speakon
Enclosure Bass reflex type with MVC technology,



15 mm Birch Plywood

Grill Acoustically transparent perforated steel with foam backing
Dimensions (H X W X D) 467 mm X 340 mm X 294 mm (18.5’’ X 13.5’’ X 11.5)
Net Weight 14 kg (31 lb)
Packed Weight 16 kg (35 lb)

CX10
