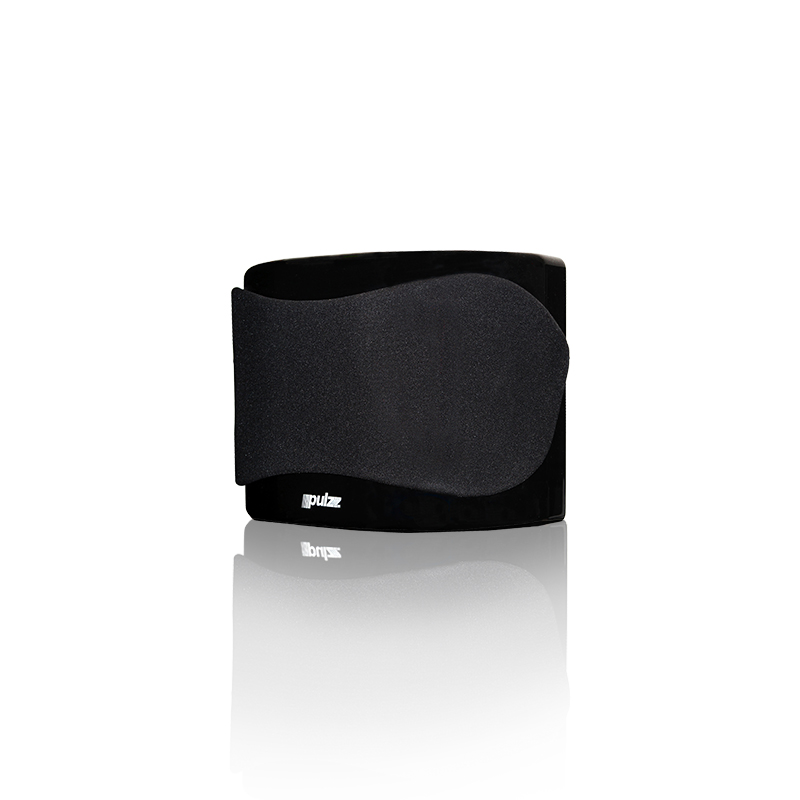

Alto
Features
- Dual 5″ Polypropelene woofer
- Kapton ribbon tweeter
- Wide horizontal dispersion
- Designed to be installed in semi acoustically treated living rooms
- High gloss piano finish
- Close coupling wall mounting arrangement
The compact Alto has a 180° dispersion to create homogeneous room reflections, thus increasing the spatial effect without damaging the localization of the source by achieving a linear spatial energy pattern.
The semi-circular cross section allows the Alto to be fixed on the walls creating a virtual unique source without any destructive mirror effect in mid-high frequencies.
The Alto cabinets are equipped with rear spikes for wall mounting. These rear spikes create a cross-coupling with the wall.
The ultra-light ribbons used in the tweeters are capable of very high acceleration and extended high frequency response.
The Alto comes in a very high gloss piano finish which blends elegantly with most living room interiors.
| Frequency Response | 85Hz to 20kHz |
| Power Rating | 100W continuous |
| Sensitivity | 91dB 1W/1m |
| Maximum SPL | 107dB continuous, 113dB peak @ 1m |
| Nominal Impedance | 8Ω |
| Crossover | 3kHz Passive low loss, air core inductors and MKP capacitors |
| Transducers | Dual 5″ Polypropelene woofer, Kapton ribbon tweeter |
| Finish | High gloss black piano finish |
| Connector | Bi-wireable gold plated binding post |
| Enclosure | MDF closed type |
| Grill | Acoustically transparent black woven fabric |
| Dimensions (H x W x D) | 230 mm x 389 mm x 175 mm (9.1″ x 15.4″ x 6.9″) |
| Net Weight | 6.8 kg (15 lb) |
| Packed Weight | 8.3 kg (18 lb) |
