THS213-U

Features

  • Unidirectional microphone
  • Cardiod pattern
  • Wide audio frequency range
  • Good quality built
  • High Signal to noise ratio
  • Clean and accurate sound reproduction
  • Light weight

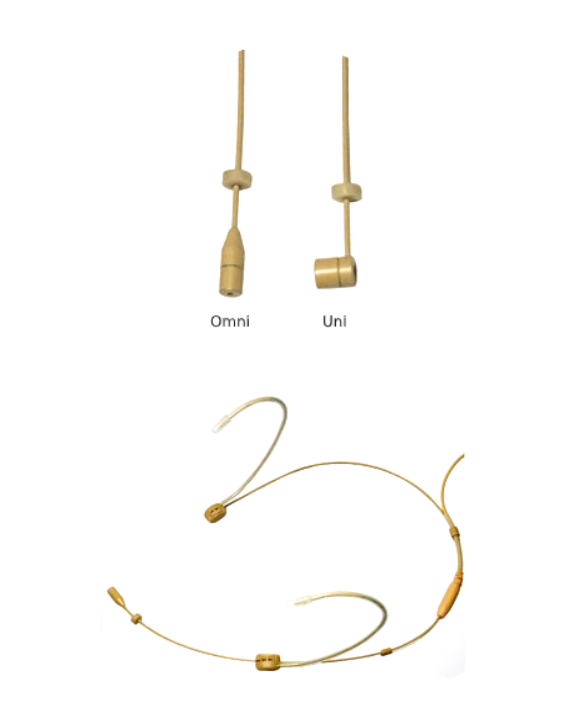

  • Microphone position adjustable
  • Microphone side easily interchangeable

Polar Pattern Uni- Directional
Frequency Response 70~16kHz (Uni)
Impedance 1,200 Ω ± 30% (at 1kHz) (Uni)
Sensitivity -68±3 dB (0 dB = 1 V/microbar) (Uni)
S/N Ratio 55 dB (Uni)
55 dB (Omni)
SPL 100 dB (Uni)
110 dB (Omni)
Operating Voltage 1~10 V DC (RL : 2K2 Ω)
Colour Skin - Black - Brown
Connector TA3F - TA4F – Mini Jack -3pin Lemo - Φ3.5 Plug
THD TA3F - TA4F – Mini Jack -3pin Lemo - Φ3.5 Plug
Dimensions
Capsule Housing Φ5 x 6 mm (Uni)
Boom Φ1 x 190 mm (Uni)
Wire Φ1.5 mm x 1.2 meter
Accessory Windscreen - Clip

THS213-U
