- 12″ (300 mm) Low Frequency Driver
- 1″ (25 mm) High Frequency Driver
- Convenient mounting options
- 90° H x 40° V dispersion
- High SPL
- Smooth frequency response on and off axis
- Professional construction
- High quality components

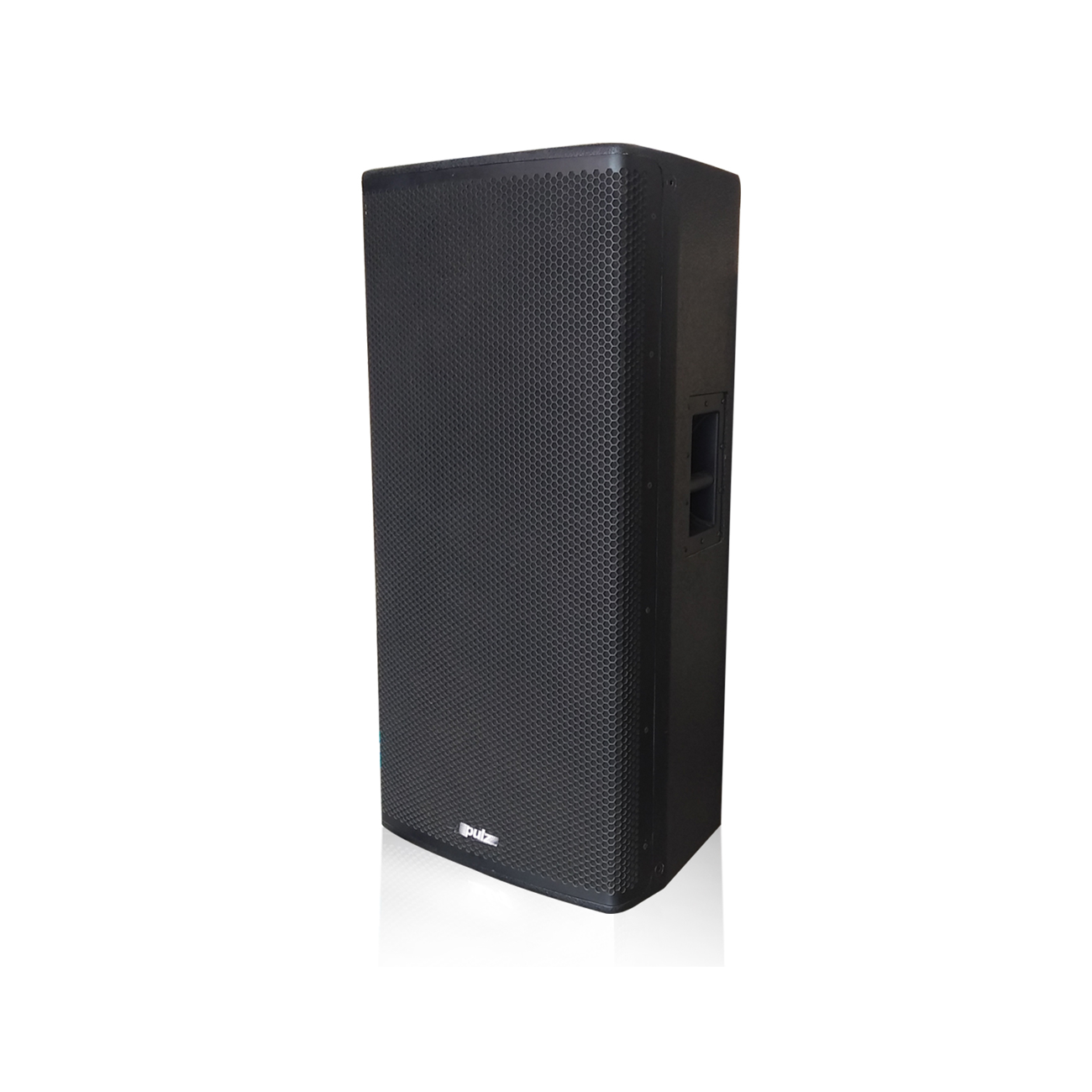

The Pulz EP2P is a 2-Way Passive Speaker System has been developed as a cost effective solution for use in small to medium size auditoriums.
The system consists of 2 x 12” low frequency driver in conjunction with 1.75″ voice coil high frequency driver of high sonic quality and dynamic range.
The 90° horizontal and 40° vertical pattern control horn exhibits uniform HF response throughout the cinema auditorium. The dual 12″ drivers are independently loaded in a direct radiator bass-reflex enclosure. This technique avoids “sympathetic failure” and provides better interface options with the amplifiers.
The enclosure is built with 15 mm Birch Plywood with black abrasion resistant structured coating to withstand different weather conditions. The large port area reduces turbulence at full power output and low frequencies. A 4-Way speakon connector ensures secure connection to the speaker. Mounting options are provided to either club it with a subwoofer or mount the system on walls with the help of additonal rigging accessories.
EP2P system incorporates a critically designed passive crossover due to which the system can be driven with a single channel of amplifier.
All components feature a textured black finish to eliminate the reflection of light through perforated cinema screens.
|Frequency Response||50Hz to 20kHz|
|Power Rating||800W AES, 2400W peak|
|Sensitivity||100dB @ 1W/1m|
|Maximum SPL||127dB continuous, 133dB peak @ 1m|
|Low Frequency Driver||2 x 12″ (250 mm) weather resistant long throw woofer|
|High Frequency Driver||1.75″ (44 mm) voice coil compression driver|
|Crossover||1.2kHz Passive, low loss air core inductors and MKP capacitors|
|Dispersion||90° horizontal x 40° vertical|
|Finish||Black impact resistant structured coating|
|Connector||1 x Speakon|
|Enclosure||15 mm Birch Plywood direct radiator vented enclosure with mounting options|
|Grill||Acoustically transparent perforated steel with foam backing|
|Dimensions (H x W x D)||987 mm x 480 mm x 373 mm (39” x 19” x 14.7”)|
|Net Weight||50 kg (110 lb)|
|Packed Weight||53 kg (117 lb)|
