- High efficiency DPT Technology
- Premium heavy duty Toroidal Transformer
- Highly sensitive CMRR balanced input stage
- Ultra low-load output capacity
- Channel independent power, Signal and clip LEDs

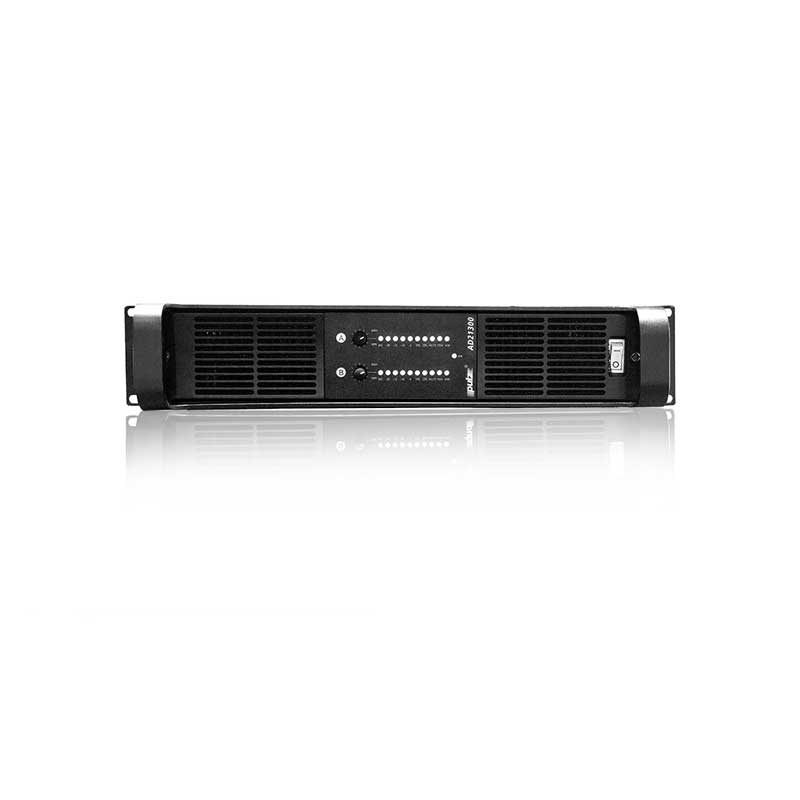

Pulz AD21300 is a two channel power amplifier designed and built for applications where sonic transparency and robust high power output capability are the prime criteria.
Built around an oversized classic toroidal power supply and ultra – linear Class AB output stage, Pulz AD21300 packs 3500 Watts of continuously deliverable clean audio in a 2U chassis.
This is made possible by the innovative dynamic power tracking controller (DPT) which fluidly adjusts the power supply rails to track the signal. As a result unwanted power dissipation in the output stages is minimized by almost 80%.
The Pulz AD21300 remains relatively cool even when driving the most demanding low impedance subwoofer loads. This approach is superior to the standard SMPS based power supplies which are prone to failures and compromise the sonic purity due to interferences.
All the components used in the Pulz AD21300 are of the highest standard and from the most reputed manufacturers.
Channel independent soft clipping, level indicators, sensitivity selection, protection and high CMRR balanced input stages are the additional useful features which makes Pulz AD21300 out perform the standard amplifiers currently available.
|No. of Channels||2|
|Output Power (per channel)||2 x 400 Watts @ 16Ω
2 x 800 Watts @ 8Ω
2 x 1300 Watts @ 4Ω
1 x 2500 Watts @ 8Ω bridge mode
1 x 3500 Watts @ 4Ω bridge mode
|Frequency Response||20Hz – 20kHz, +0/-0.5dB|
|Total Harmonic Distortion + Noise||<0.1%|
|Signal to Noise Ratio||110dB|
|Input Sensitivity||0.7V, 1.4V|
|Input Impedance||20kΩ, balanced|
|Voltage Gain||38dB at 0.7V Sensitivity|
|Cooling||Air flow from front to rear|
|Protection||Fuseless short circuit protection, ultrasonic and RF protection, thermal protection|
|Load Protection||Turn on delay, DC fault protection, Ultrasonic limiting|
|Power requirement||220V AC 50Hz, ±10%|
|Inputs||Balanced inputs XLR-F|
|Front panel||Power switch, Level control, Power indicator, Signal indicator, Clip, Protection|
|Rear panel||Stereo/Bridge switches, Sensitivity selection switch, VCL selection switch|
|Dimensions (H x W x D)||88 mm x 482 x 522 mm (3.5” x 19” x 20.6”)|
|Net Weight||32 kg (70 lb)|
|Packed Weight||35 kg (77 lb)|
