- High performance coaxial driver
- 90° conical dispersion
- High SPL
- Smooth frequency response on and off axis
- Professional construction
- High quality components
- Convenient mounting options

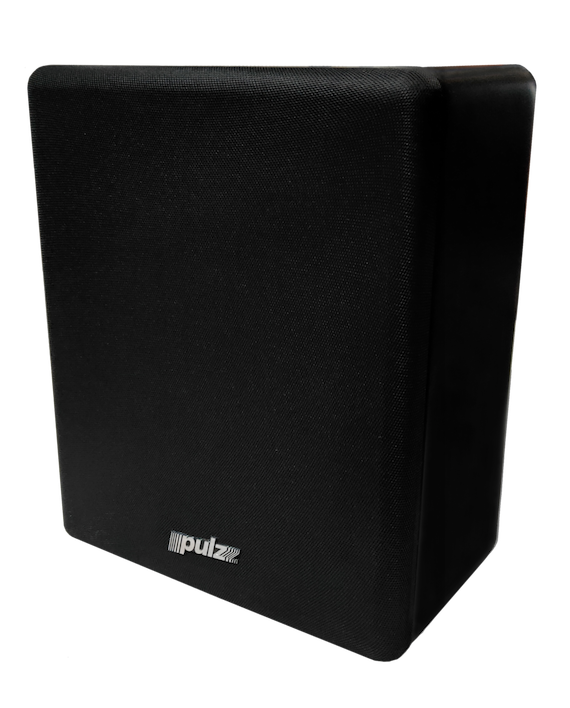

The Pulz CSX5H Coaxial Speaker System is designed to reproduce immersive audio soundtracks faithfully in preview theatres, studios and prestige home theatres. Powered with a 5” high sensitivity low distortion woofer and 1″ voice coil horn loaded tweeter of European origin, CSX5H is capable of reproducing very high SPL and uniform dispersion throughout the auditorium. In the conventional preview theatre and studio surround speaker systems, multiple drivers are aligned either vertically or horizontally. This design may produce off axis lobes and uneven frequency response. The Pulz 5” driver with coaxially mounted HF unit on the other hand is coherent and produces smooth on and off axis frequency response.
A sophisticated passive crossover with close tolerance components ensures seamless integration of low and high frequency drivers. The closed type enclosure is CAD optimized for precise low frequency loading. The geometry of the acoustically transparent grill minimizes diffraction. Heavy duty spring loaded terminal posts facilitates convenient and secure connectivity at site.
The CSX5H can be mounted on the wall with optional C-bracket to achieve ±45° tilts in 9° increments either in horizontal or vertical plane. A heavy duty MDF enclosure is finished with black matt finish paint.
The Pulz CSX5H incorporates advanced technology driver and components to deliver dynamic, high SPL and wide dispersion sound into small preview theatres, studios and prestige home theatres.
|Frequency Response||100Hz to 20kHz|
|Power Rating||150W AES, 600W peak|
|Sensitivity||92.5dB @ 1W/1m|
|Maximum SPL||114dB continuous, 120dB peak @ 1m|
|Low Frequency Driver||5” (125 mm) Mid-Bass driver with coaxial entry|
|High Frequency Driver||1″ (25 mm) voice coil compression driver mounted coaxially|
|Crossover||4 kHz passive, Air core inductors, MKP capacitors, wire wound resistors|
|Finish||Black impact resistant structured coating|
|Connector||Push type binding post, cable upto 4 mm diameter|
|Enclosure||15 mm MDF direct radiator sealed enclosure|
|Grill||Acoustically transparent woven fabric|
|Dimensions (H x W x D)||216 mm x 180 mm x 177 mm (8.51’’ x 7.10’’ x 7’’)|
|Net Weight||05 kg (11 lb)|
|Packed Weight||6 kg (13 lb)|
