- 8″ (200 mm) dual cone full range driver
- High sensitivity dual cone driver
- 90° dispersion
- Smooth on and off axis frequency response
- High sound pressure level
- Compact design
- Professional construction
- High quality components

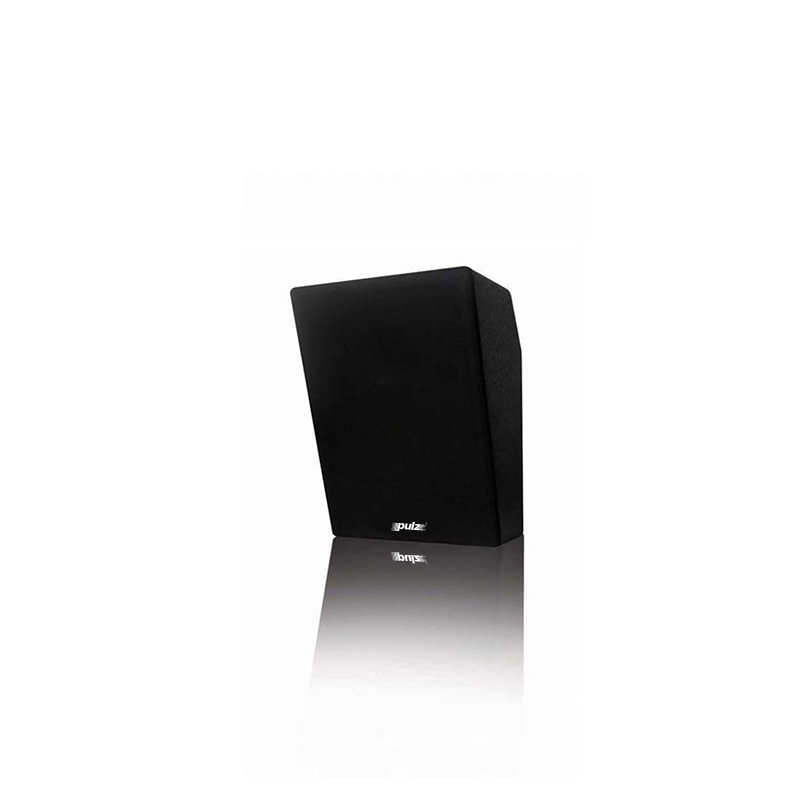

The Pulz DC8 Cinema Surround Speaker System is specially designed for immersive sound playback in small and medium cinemas. The system is designed with a high sensitivity, high power 8″ full range driver with well defined directivity. The resultant propagation is ideally suited for immersive sound without the typical lobing associated with standard displaced multi-driver surround boxes.
The enclosure is CAD optimized for precise low frequency loading. The geometry of the acoustically transparent grill minimizes diffraction. Heavy duty spring loaded terminal posts facilitates convenient and secure connectivity at site.
The shape of DC8 allows it to be wall mounted with a 15° downward angle. The enclosure is equipped with various mounting options to place it directly on the wall or mount it with an optional C-bracket to achieve ±45° tilts in 9° increments. Additional security hooks are provided for added safety when mounting the system on ceiling. The heavy duty MDF enclosure is finished with abrasion resistant textured paint.
The Pulz DC8 incorporates advanced technology driver and components to deliver dynamic, high SPL and wide dispersion sound into medium and large cinemas to reproduce ambience and effects in the most demanding cinema.
|Frequency Response||65Hz to 18kHz|
|Power Rating||250W AES, 750W peak|
|Sensitivity||94dB @ 1W/1m|
|Maximum SPL||117dB continuous, 123dB peak @ 1m|
|Transducers||8″ (200 mm) dual cone full range driver|
|Finish||Black impact resistant structured coating|
|Connector||Push type binding post, cable upto 4 mm diameter|
|Enclosure||15 mm MDF direct radiator vented enclosure|
|Grill||Acoustically transparent black woven fabric|
|Dimensions (H X W X D)||430 mm X 330 mm X 294 mm (17” X 13” X 11.5”)|
|Net Weight||8.8 kg (19 lb)|
|Packed Weight||9.8 kg (22 lb)|
