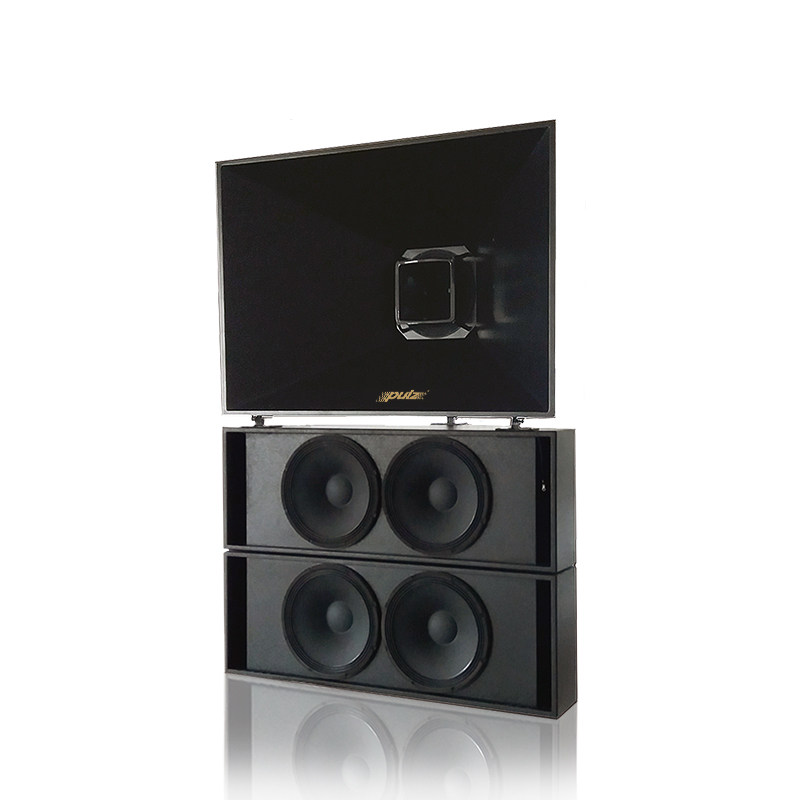

IsoWave D4

Features

  • 4 X 15″ (380 mm) Low Frequency Driver
  • 12” (300 mm) Mid Frequency Driver
  • 1.75” (44 mm) (380 mm) High Frequency Driver
  • Coherent wavefront
  • Point source reproduction
  • Coaxial design with waveguide loading
  • Large 90° X 60° MDF horn
  • High dynamic SPL
  • Low harmonic distortion
  • Enhanced sonic accuracy
  • Smooth and extended frequency response

Frequency Response 45Hz to 20kHz
Power Rating LF: 2000W AES, 8000W peak;



MF: 500W AES, 2000W peak;

HF: 80W AES, 450W peak

Sensitivity LF: 104dB @ 1W/1m;



MF: 105.5dB @ 1W/1m;

HF: 113dB @ 1W/ 1m

Maximum SPL LF: 137dB continuous, 143dB peak @ 1m;



MF: 132.5dB continuous, 138.5dB peak @ 1m;

HF: 132dB continuous, 138dB peak @ 1m

Nominal Impedance LF: 4Ω; MF: 8Ω; HF: 16Ω
Recommended Amplifier 800W to 1300W @ 4Ω X 2 Ch.
Low Frequency Driver 4 X 15″ (380 mm) weather resistant long excursion woofer
Mid Frequency Driver 12” (300 mm) Low-Mid driver with coaxial entry
High Frequency Driver 1.75” (44 mm) voice coil compression driver mounted coaxially
Crossover 250Hz Active, 1.2kHz Active or Passive
Finish Black impact resistant structured coating
Connector Push type binding post, cable upto 4 mm diameter
Enclosure 18 mm MDF direct radiator vented enclosure
Dimensions (H X W X D) 1789 mm X 1235 mm X 670 mm (70.4” X 48.6” X 26.4”)
Net Weight 145 kg (320 lb)
Packed Weight 156 kg (344 lb)
