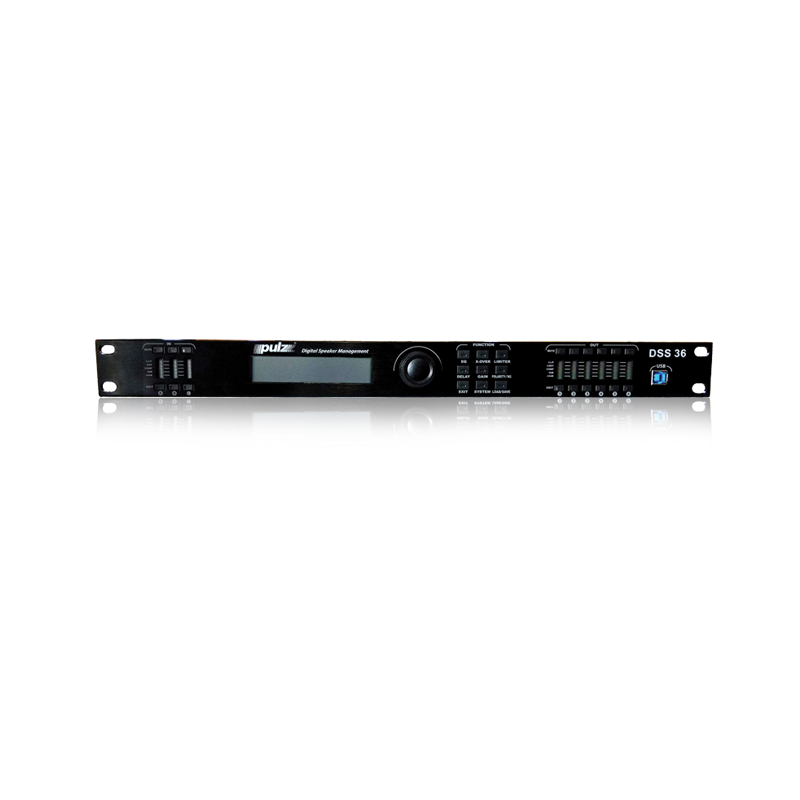

DSS36

Features

  • 3 analog inputs and 6 analog outputs
  • 24 bit A/D and D/A convertor
  • 96kHz sampling rate
  • 6 PEQ per input and 6 PEQ per output
  • 8th order filters for crossover
  • USB and optional wireless connectivity
  • Robust linear power supply for high reliability and low noise spectrum

Input impedance Balanced: 20KΩ
Output impedance Balanced: 100Ω
PC port 1 x USB (front panel), 2 x RS485,1 x RJ45 (back panel).
CMRR >63dBu at 1kHz
Input range ≤+25dBu
Frequency response 20Hz – 20kHz(+/-0.5dB)
S/N Ratio > 118dB
THD <0.01% output=0dBu/1kHz
Crosstalk of channels > 88dB at 1kHz
Functions of Input channels
Input mute Mute/Unmute selection for each input channel
Input delay Each input channel has a separate delay control, adjustable range of 0-1000ms, step: 21us increment till 10ms,
  step size: 84us from 10ms-20ms, step: 0.5ms from 20-1000ms
Input polarity In-phase(+) or Reversed phase(-)
Input EQ Each input channel has 6 parametric EQ
Input gain Input gain range: -80dB ~ +12dB, step size: 0.2dB
Input compression Threshold: -40dBu ~ +20dBu, step size: 0.5dBu; Compression ratio: 1.0:1 ~ 20:1, step: 0.1 for 1.0:1 ~ 2.0:1, step: 0.5 for 2.0:1 ~ 20.1;
Attack time 0.3ms ~ 200ms, Release time: 50ms ~ 5000ms
Automatic gain control Threshold: -80dBu ~ +20dBu, Target: -80dBu ~ +20dBu, step size: 0.5dBu; Ratio: 1:1.0 ~ 1:20, step: 0.1 for 1:1.0 ~ 1:1.2, step: 0.5 for 1:1.2 ~ 1:20;
Attack time 0.3ms ~ 200ms,
Release time 50ms ~ 5000ms
Functions of Output channels
Output mute Mute/Unmute selection for each output channel
Output selection Each input channel can be selected to routed to any output channel
Output gain Range: -80dB ~ +12dB, step: 0.2dB
Output delay Each input channel has a separate delay control, adjustable range of 0-1000ms, step: 21us increment till 10ms,
  step: 84us from 10ms-20ms, step: 0.5ms from 20-1000ms
Output polarity In-phase(+) or Reversed phase(-).
Crossover Each output channel can be independently set as LPF or HPF. Filter type: Linkwitz-Riley, Bessel, Butterworth
Crossover Frequency 20Hz ~ 20kHz, Slope: 12dB/oct – 48dB/oct in increments of 6dB/oct
Compression Threshold: -40dBu ~ +20dBu, step: 0.5dBu; Compression ratio: 1.0:1 ~ 20:1; step: 0.1 for 1.0:1 ~ 2.0:1, step: 0.5 for 2.0:1 ~ 20.1;
Attack time 0.3ms ~ 200ms Release time: 50ms ~ 5000ms
Limiter Threshold: -40dBu ~ +20dBu, step: 0.5dBu; Attack time: 0.3ms ~ 200ms, Release time: 50ms ~ 5000ms
Output EQ Each output channel has 10 EQ’s selectable to PEQ or Shelving
Gain -20db ~ +20db; Shelf Slope: 6db/12db; Frequency: 20Hz – 20kHz
Bandwidth 0.05oct ~ 3oct; step: 0.05oct; Gain: -20db~+20db, Step 0.1db.
Processor 96kHz sampling frequency, 32-bit floating-point DSP.
Display 2 x 24 LCD, 8-LED for input/output level. Mute and editing functions can be displayed.
Power ≤25W
Power Supply AC110V/220V 50/60Hz
Dimension (H x W x D) 44 mm X 482 mm X 228 mm (1.7″ X 19″ X 9″)
Net weight 4.1 kg (9 lb)
Gross weight 5 kg  (11 lb)

DSS36
